Fitted by top sailors the world over when only the best will do. Sea Sure rudder fittings are precision machined, tough, reliable and lightweight. Both pintles and gudgeons are manufactured from a heat treated corrosion resistant aluminium alloy with black anodised finish for complete protection. Precision machining and optional low friction carbon bushes eliminate undesirable play in the rudder system. Pintles are cross pinned for added rigidity and absolute security.

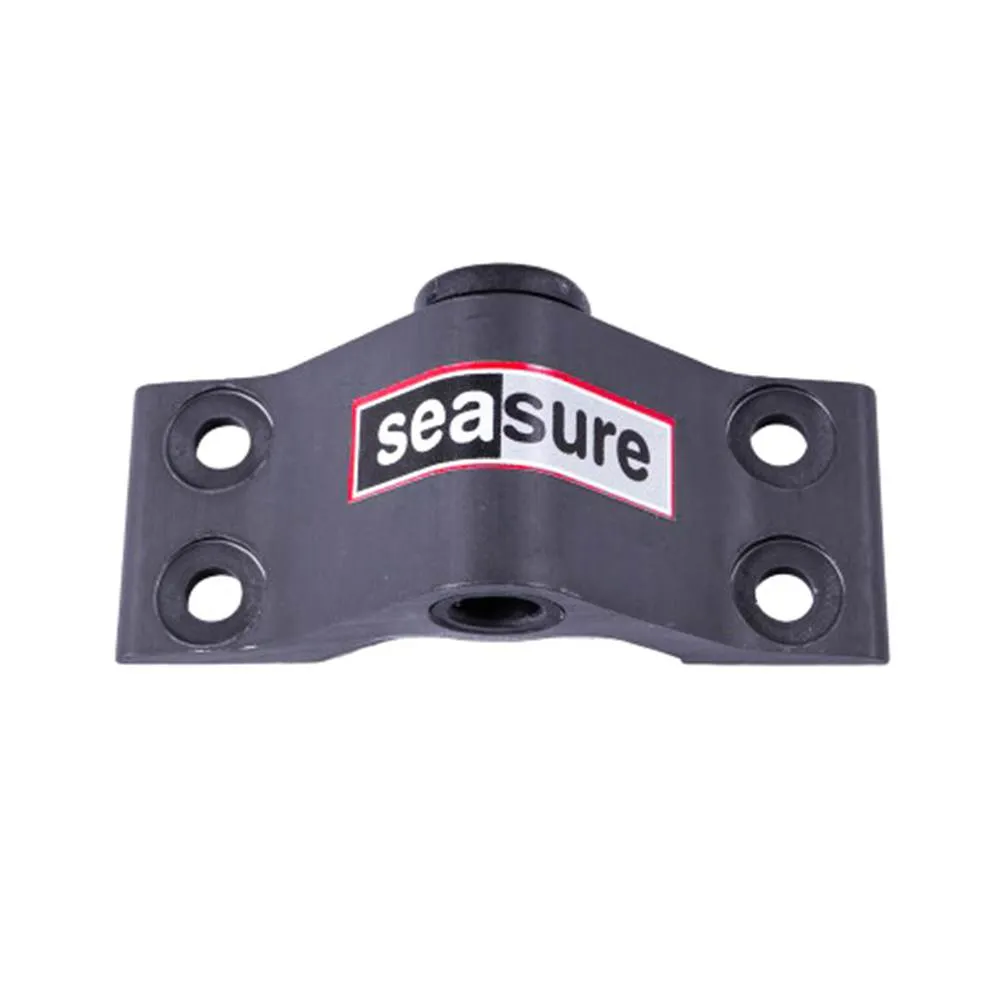

- Bottom transom Gudgeon
- Carbon bush
- Weight 39g
- For a Pintle pin diameter 8mm
- 4 x 5mm fixing holes
- Hole centres 55.5mm and 16mm
- Fitted with carbon bush
They have 4 x 5mm holes with an 11mm recess to take a pan head screw/bolt
